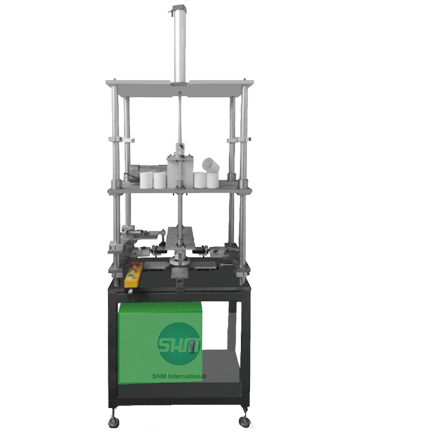

RW350/RW350s Semi Automatic Round Box Wrapping Machine
INTRODUCTION:
The semi-automatic round box wrapping machine is aimed at the round boxws withe the internal edge-fold and bottom edge-fold.
MAIN FEATURES:
1.Fever glue stains :It reduces hand contact time and oppotunity,so there will be a few glue stains on the formed round boxes.
2.Fast speed: A single person can operate the double-station working.The speed can reach 12pcs/min,which is 5~8 times of the manual work.
3.Energy saving,small space,simple operation.
4.The semi-automatic round box wrapping machine can choose single station or double stations.
MAIN SPECIFICATIONS:
| Model | RW350(single station) | RW350S(double stations) |
| Round box diameter | Max.350mm Min.70mm | Max.350mm Min.70mm |
| Round box height | Max.300mm Min.30mm | Max.300mm Min.30mm |
| Speed | 6pcs/min | 12pcs/min |
| Air | 0.5-0.7Mpa | 0.5-0.7Mpa |
| Power | 220V 50Hz 0.3kw | 220V 50Hz 0.3kw |
| Weight | 300kg | 600kg |
| Dimension | 800x500x2200mm | 1800x500x2200mm |
