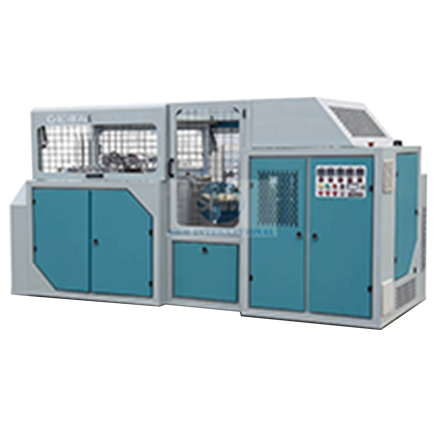

X16 Paper Cup Forming Machine
INTRODUCTION:
X16 paper cup making machine is a multi-station automatic machine. It has continuous automatic procedures like feeding, sealing, oil-filling, washing, heating, knurling, convex knurling, curling, unloading, etc. It is the ideal equipment for producing test-drinking cups, marketing cups, and advertising cups, ice-cream cups, etc. It is widely used for hot drinks and some other beverages.
With the comprehensive technical improvement in 2012, our X16 machine works more stably, and the speed is improved also. Now, it can produce 45-55 pieces of paper cup in one minute.
MAIN FEATURES:
1. We use open-dividing cam running as driving system, so, it can keep higher precision and enlarge the machine life.
2.The part for feeding paper is same like middle speed paper cup machine feeding part, papers sucks by cam, and drop down by mechanical hands, so, it can be more steadly.
3.It adopts stretching punching cutter for bottom forming, and bottom looks nicer, also can reduce the bottom leak rate.
4.The frame adopts the rectangle pipe and u-steel welding, much stronger than tradition, all connecting rods are stronger and adopts double bearing structure, so, the performance will be more steadily.
5.Knurling system adopts alloy steel making, stronger power, and higher precision; it is an ideal choosing for thicker papers and deep bottom.
6.It’s with safe door protection device.
MAIN SPECIFICATIONS:
| Model | X16 | 2X16 |
| Weight | 1800kg | |
| Packing specifications | 2800x1400x1800mm | |
| Total power | 380V 50Hz 5kw | 380V 50Hz 5kw |
| Air supply (provided by customer) | 0.5-0.8Mpa 0.3cube/min | |
| Capacity | 50-55pcs/min | |
| Paper specification | One side PE coated paper | Two side PE coated paper |
| Paper grams | 150-250g/m² | 150-380g/m² |
| Paper cups specifications | (A)Ф70-100mm;(B)60-135mm; (C)Ф45-75mm;(D)5-12mm | |
