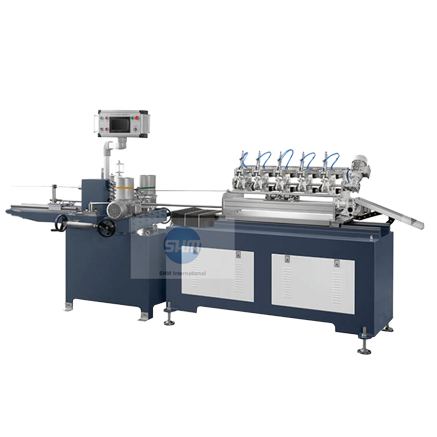

High-speed Paper Straw Machine
MAIN FEATURES:
1. This machine adopts PLC control, the main machine is equipped with frequency conversion speed regulation, and the man-machine interface is touch screen, which is simple to set up and easy to operate;
2. The cutting unit adopts servo multi-knife cutting system, servo motor synchronous tracking and cutting, high precision, saving time and efficiency;
3. Low-voltage electrical appliances adopt Schneider, the use of electrical components is more stable, and the service life is longer;
4. The main accessories are made of stainless steel to ensure the product is hygienic and environmentally friendly.
MAIN SPECIFICATIONS:
| Paper Layer | 1-3 layer |
| Straw Inner diameter | 5-12mm |
| Strawwall-thickness | 0.3-1mm |
| Cutting Length | 100-800mm |
| Speed | 0-42meter/min |
| Winding head | 2 |
| Cutter | 5sets |
| Gluing Way | Single、double sides |
| Power Supply | 380V 3Phase 50Hz |
| Power | 7.7kw (Main motor 3kw;Servo motor 1kw; frequency inerter 3.7kw) |
| Measurement | 5600x1600x1750mm |
| Working Space | 11000x6000x2000mm |
| Weight | 2000kg |
