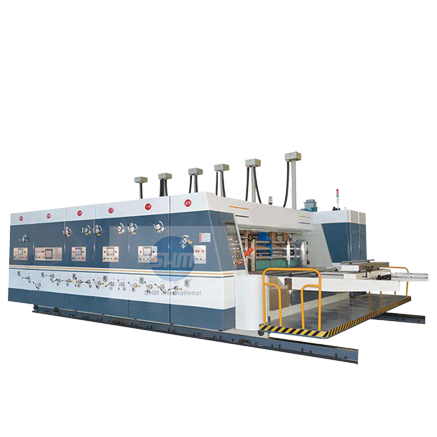

Autmatic Flexo Printing Slotting Die-Cutting Machine
MAIN FEATURES:
1. This machine is designed and produced based on high quality, high speed, high efficiency, reliability and safety, with the advantages of quick changing order and easy operation.
2. Adapting imported PLC with touch screen control. It can save order, and accelerate the changing order speed.
3. Adopt high quality material and assembly part.
4. All cylinders and rollers are chrome plated for ideal hardness.
5. Transmission gears from precision grinded alloy steel and with spraying type circulating lubrication system.
6. Use expansion sets tight link to reduce abrasion of the shaft, keep high precision of the machine in long year.
7. Adopt hanging structure, auto reset, quick changing order.
8. Each unit is equipped with Emergency Stop switch to ensure safety operation.
9. Using Self Locking gap adjustment device for ease operation.
10. Electric element, bearing, and pneumatic element all use international famous brand.
11. Mechanical lead edge feeder system,inverter adjust air volume,feeding is precision and steady.
12. The slot knife with phasing and box height adjustment device, the frequency changer control the dynamic 360 degree adjustment.
13. The slot knife seat lateral movement uses the electric control, in fast and accurate.
14. Rubber roller automatic displacement device,prolong the service life .
15. Quick replacement rubber anvil is from abroad,it is easy for replacement and wear-proof.
16. Pull roller puick lateral moving mechanism.
17. Equipped with automatic paper stacking machine.
MAIN SPECIFICATIONS:
| Model | RYKC18 | RYKC22 | RYKC25 | |
| Max machine speed | 120pcs/min | 100pcs/min | 100pcs/min | |
| Max feeding size | 1880x3200mm | 2260x3400mm | 2570x3600mm | |
| Skip feeding size | 2200x3200mm | 2700x3400mm | 3100x3600mm | |
| Max printing area | 1800x3200mm | 2200x3400mm | 2500x3600mm | |
| Min feeding size | 500x890mm | 550x890mm | 600x890mm | |
| Max slotting depth | 490mm | 580mm | 660mm | |
| Registration precision | 2.5-12mm | |||
| Printing plate thickness | ≤±0.6mm | |||
| Paper thickness | 6mm | |||
| Min slotting interval | Normal | 190x190x190x190mm | ||
| Reverse | 310x110x310x110mm | |||
